Cisco IP Phone 8800 Key Expansion Module

Cisco IP Phone 8800 Key Expansion Module.

Details

Cisco IP Phone 8800 Key Expansion Module.

Description

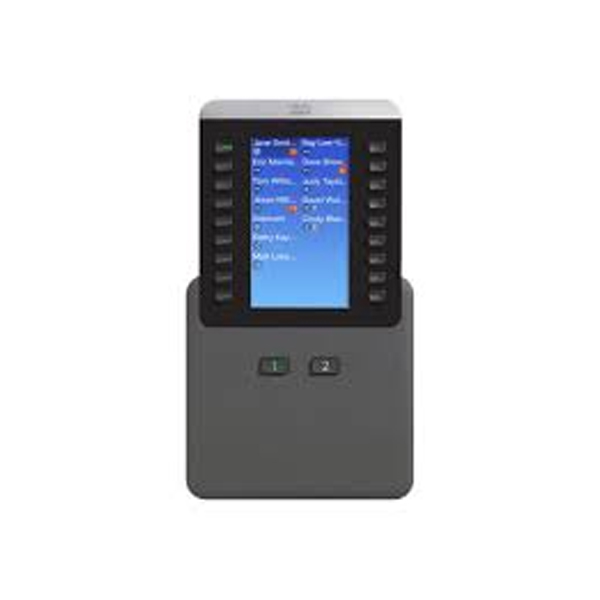

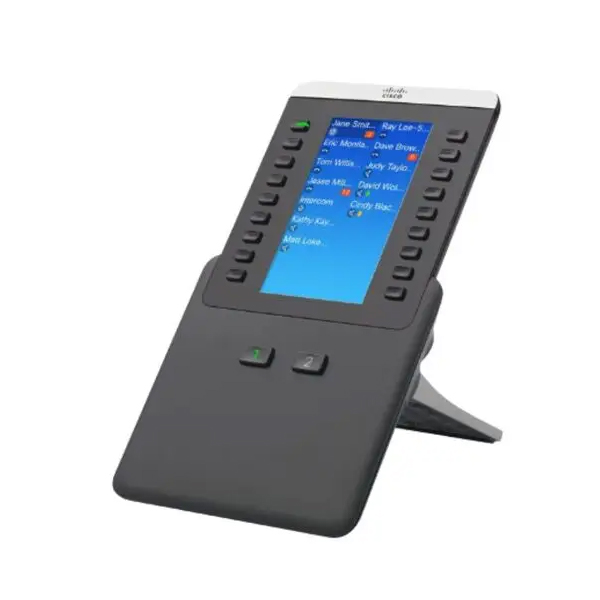

The Cisco CP-8800-V-KEM is a video key expansion module designed for Cisco IP Phone models in the 8800 Series such as the 8851, 8861, and 8865. It expands the functionality of these phones by providing additional programmable buttons and a large color graphical display, helping users quickly access directory numbers, speed dials, busy lamp fields (BLF), and other feature keys. It’s ideal for administrative staff, receptionists, and power users who manage many lines or handle high call volumes.

Key Features

• Large 4.3-inch color TFT display with 480 × 272 resolution and 16-bit color depth for clear visual feedback.
• Provides 18 additional illuminated programmable keys (36 total with page toggle) for directory numbers, speed dial, and feature functions.
• Illuminated keys allow easy identification of line status (e.g., idle, in use, ringing).
• Adjustable display tilt to align with the host phone for ergonomic viewing.
• Plug-and-play installation connects directly to compatible Cisco IP phones without needing a separate power supply it draws power from the host phone.
• Supports up to three modules per phone, dramatically increasing programmable key capacity for large environments.
• Ideal for call coverage tasks like BLF, speed dial, feature access, and shared-line management.

Specifications

• Model: CP-8800-V-KEM=
• Display: 4.3-inch (480 × 272 pixels) color TFT with backlight.
• Programmable Keys: 18 physical illuminated keys (36 total using page toggle).
• Compatibility: Cisco 8800 Series IP Phones (e.g., 8851, 8861, 8865).
• Power: Powered from the host phone (no separate power adapter).
• Expansion: Up to 3 modules supported per phone for a maximum of 108 additional keys.
• Adjustability: Tilt display to match host phone viewing angle.
