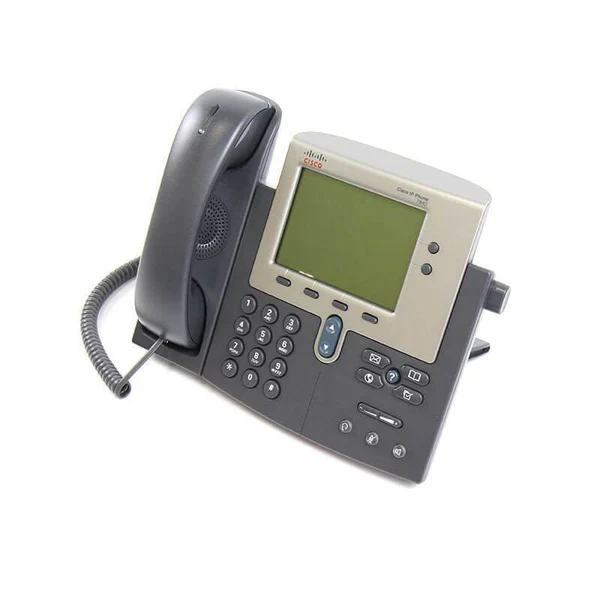

Cisco Unified IP Phone 7940G.

Cisco Unified IP Phone 7940G.

Details

Cisco Unified IP Phone 7940G.

Description

The Cisco 7940G is a classic business-class VoIP desk phone from Cisco’s 7900 Series designed for users with moderate call volume needs. It offers two programmable line/feature buttons, a large pixel-based display, and four dynamic soft keys that present call options and functions. The integrated Ethernet switch allows connection to both the network and a PC through a single wall outlet, and the phone supports common VoIP protocols for flexible deployment.

Key Features

• Two programmable line and feature buttons for multiple call handling
• Large pixel-based LCD display with caller name/number and status info
• Four dynamic soft keys to guide through call features and functions
• Full-duplex speakerphone for hands-free communication
• Integrated Ethernet switch with dual 10/100 ports
• Support for SCCP, SIP, and MGCP protocols
• Dedicated headset port and volume/mute controls
• Adjustable foot-stand that also enables wall mounting

Specifications

• Model: CP-7940G=
• Lines Supported: 2 programmable lines
• Display: Large pixel-based LCD
• Network Interface: 2× 10/100 Ethernet ports
• Power: Cisco PoE (Prestandard/Optional IEEE 802.3af)
• Protocols Supported: SCCP, SIP, MGCP
• Audio Controls: Volume, mute, headset, speakerphone
• Ringtones: 24+ user-adjustable
• Mounting: Desk or optional wall mount
