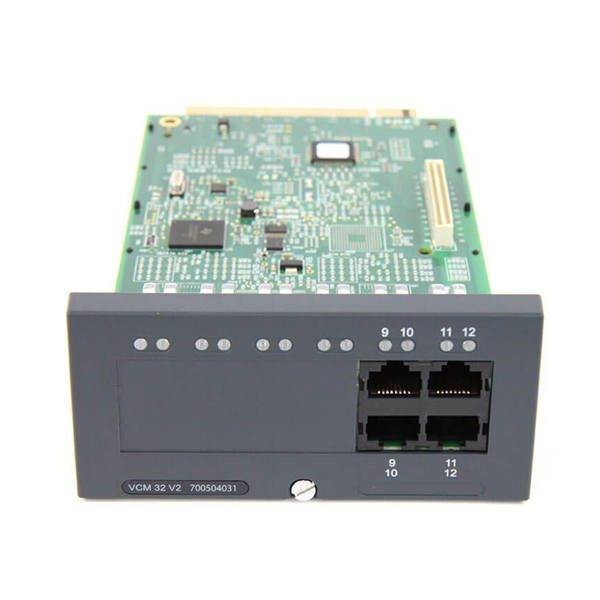

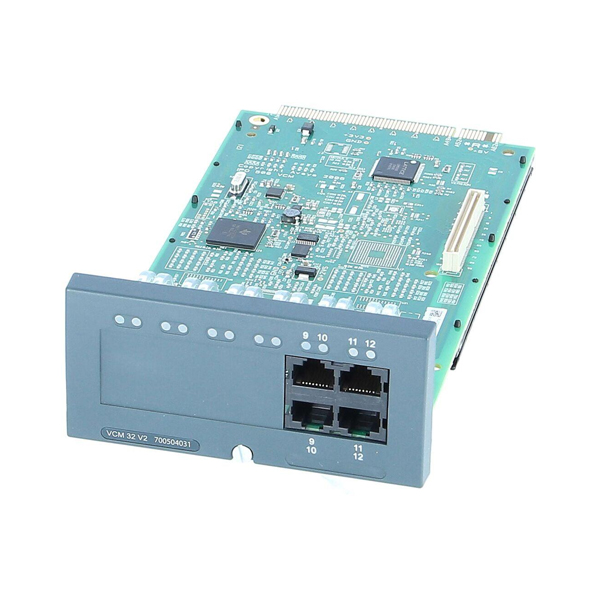

AVAYA – 700504031 IP500 VCM 32 V2 Base Card

Avaya 700504031 IP500 VCM 32 V2 Base Card

Details

Avaya 700504031 IP500 VCM 32 V2 Base Card

Description

Designed to provide voice compression resources for Avaya IP Office systems, this expansion card enables VoIP functionality across supported IP500 and IP500 V2 platforms. It plays a critical role in supporting IP telephones, SIP trunks, Small Community Networking (SCN), and communications that require conversion between traditional telephony and IP-based services.

The 700504031 VCM 32 V2 card delivers 32 voice compression channels, helping organizations expand their communications infrastructure while maintaining high-quality voice connectivity. It is commonly deployed in enterprise and branch office environments where IP telephony and unified communications services are essential.

The module can also accommodate optional trunk daughter cards, including Analog Trunk and Universal PRI interfaces, providing additional deployment flexibility. Compatible with IP Office Release 8.1 and later, it offers a scalable solution for businesses transitioning to modern IP communications.

Key Features

• Provides 32 voice compression channels
• Supports VoIP call processing
• Enables SIP trunk connectivity
• Supports Avaya IP telephones
• Compatible with Small Community Networking (SCN)
• Supports TDM-to-IP call conversion
• Accepts optional trunk daughter cards
• Compatible with IP500 and IP500 V2 systems
• Suitable for enterprise communications
• Scalable expansion solution

Specifications

• Part Number: 700504031
• Vendor: Avaya
• Product Model: IP500 VCM 32 V2
• Product Type: Voice Compression Module
• Voice Compression Channels: 32
• Compatibility: IP500 / IP500 V2 Controllers
• Software Requirement: IP Office Release 8.1 or Later
• Connectivity Support: SIP Trunks, IP Endpoints, SCN
• Expansion Capability: Supports Optional Trunk Interface Cards
• Installation Type: Base Card
• Application: VoIP and Unified Communications
• Deployment: Business Communication Systems
• Maximum Supported: Up to 2 VCM Cards per Control Unit (subject to system limits)

Typical Applications

• SIP trunk deployments
• Avaya IP phone implementations
• Unified communications platforms
• Enterprise telephony systems
• Branch office networking
• VoIP migration projects
• Multi-site communications
• IP Office system expansion
