Description

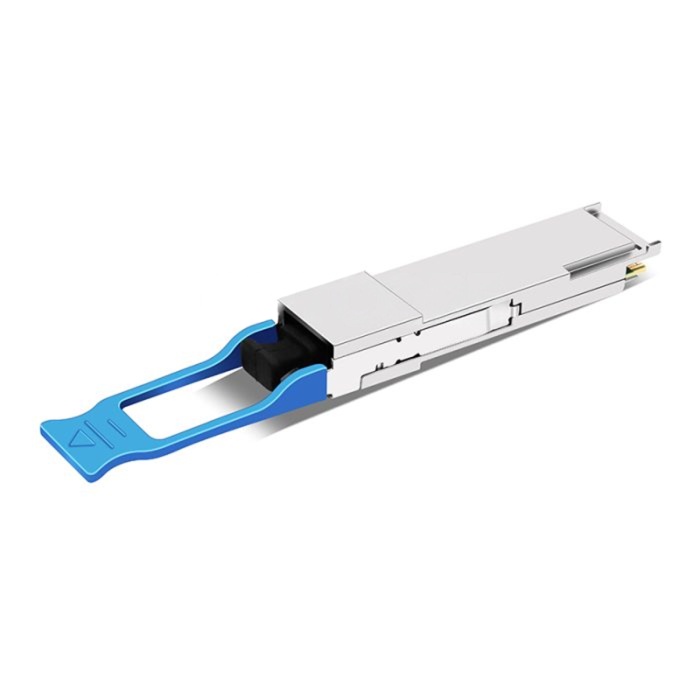

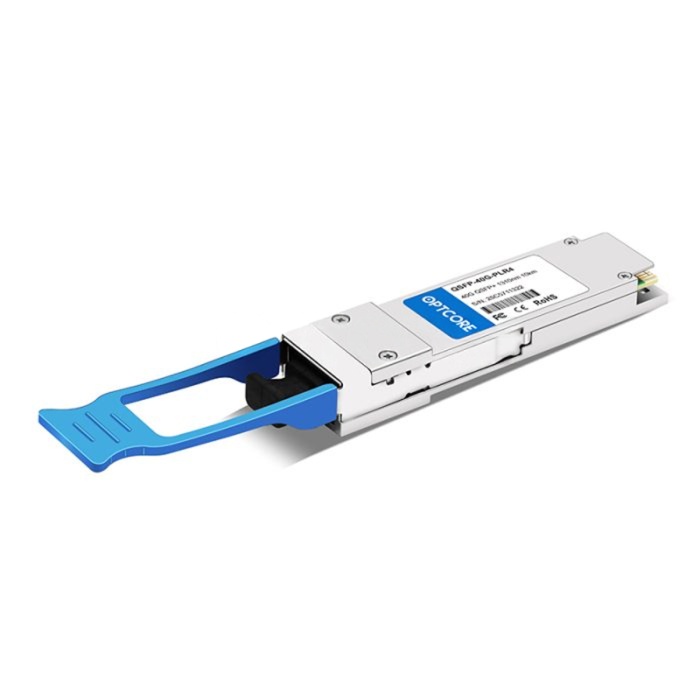

Juniper JNP-QSFP-4X10GE-IR 40GbE QSFP+ Optical Transceiver Module
Details
Juniper JNP-QSFP-4X10GE-IR 40GbE QSFP+ Optical Transceiver Module
Description
The Juniper JNP-QSFP-4X10GE-IR is a high-performance 40 Gigabit Ethernet QSFP+ optical transceiver designed for enterprise, campus, and data center networking environments. This 40GBASE-IR4 compatible module delivers high-speed fiber connectivity over single-mode fiber (SMF), supporting transmission distances of up to 1.4 km using a 1310nm wavelength.
Designed for Juniper networking platforms, the JNP-QSFP-4X10GE-IR uses four independent 10Gbps transmit and receive channels to provide an aggregate bandwidth of 40Gbps. The module features an MPO/MTP optical connector, hot-swappable QSFP+ form factor, and Digital Optical Monitoring (DOM) support for real-time diagnostics and performance monitoring.
Built for high-density network deployments, this optical transceiver is commonly used in data center interconnects, aggregation layers, enterprise backbone networks, and high-speed switch uplinks requiring reliable 40GbE fiber connectivity.
Key Features
- 40GbE QSFP+ optical transceiver module
- Supports 4 x 10Gbps parallel optical lanes
- Up to 40Gbps aggregate bandwidth
- 1310nm optical wavelength
- Supports single-mode fiber (SMF) connectivity
- MPO/MTP fiber connector interface
- Transmission distance up to 1.4 km
- Digital Optical Monitoring (DOM) support
- Hot-swappable QSFP+ form factor
- Compatible with Juniper networking platforms
Specifications
- Part Number: JNP-QSFP-4X10GE-IR
- Product Type: QSFP+ Optical Transceiver
- Form Factor: QSFP+
- Data Rate: 40 Gbps
- Interface Standard: 40GBASE-IR4 / 4x10GE IR
- Fiber Type: Single-Mode Fiber (SMF)
- Connector Type: MPO/MTP
- Wavelength: 1310nm
- Maximum Distance: Up to 1.4 km
- Digital Diagnostics: DOM / DDM Supported
- Power Consumption: Up to 3.5W
- Operating Temperature: 0°C to 70°C
- Application: Data Center, Enterprise, Aggregation, and Backbone Networks
