JUNIPER – WLA532-WW Wireless Access Point

Juniper WLA532-WW Wireless Access Point

Details

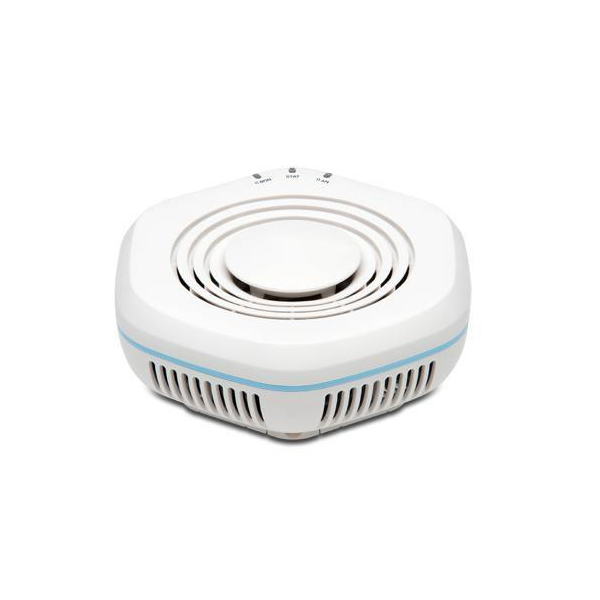

Juniper WLA532-WW Wireless Access Point

Description

The Juniper WLA532-WW is an enterprise-grade wireless access point designed for high-density wireless environments such as educational institutions, healthcare facilities, corporate campuses, and large office deployments. Featuring dual-radio 802.11a/b/g/n technology with 3×3 MIMO and three spatial streams per radio, the WLA532 delivers enhanced wireless capacity, improved coverage, and reliable performance for bandwidth-intensive applications. The access point supports concurrent operation on both 2.4 GHz and 5 GHz frequency bands, making it suitable for demanding enterprise WLAN deployments. Its compact design, integrated antennas, and Power over Ethernet (PoE) support simplify installation while maintaining enterprise-class security and centralized management capabilities.

Key Features

• Dual-radio IEEE 802.11a/b/g/n wireless access point
• 3×3 MIMO with three spatial streams (3SS)
• Concurrent 2.4 GHz and 5 GHz operation
• Six integrated internal antennas
• Gigabit Ethernet uplink port
• IEEE 802.3af Power over Ethernet (PoE) support
• Wireless Intrusion Detection System (WIDS)
• Quality of Service (QoS) and Wi-Fi Multimedia (WMM) support
• Spectrum analysis capabilities
• Mesh and bridge networking support
• Ceiling and wall mounting options
• Designed for high-density enterprise wireless deployments

Specifications

• Model: WLA532-WW
• Product Type: Wireless Access Point
• Wireless Standard: IEEE 802.11a/b/g/n
• Wi-Fi Generation: Wi-Fi 4 (802.11n)
• Frequency Bands: 2.4 GHz and 5 GHz
• Radio Configuration: Dual Radio
• MIMO Configuration: 3×3 MIMO
• Spatial Streams: 3 per Radio
• Maximum Wireless Data Rate: Up to 450 Mbps
• Ethernet Port: 1 × 10/100/1000 Gigabit RJ-45
• PoE Support: IEEE 802.3af
• Antennas: 6 Internal Omnidirectional Antennas
• Security: WPA, WPA2, AES-CCMP, 802.1X
• QoS Support: Yes
• Wireless IDS/IPS: WIDS Support
• Mesh Networking: Supported
• Spectrum Analysis: Supported
• Mounting Options: Ceiling Mount and Wall Mount
• Form Factor: Indoor Access Point
• Power Consumption: Approximately 10 Watts
• Operating Temperature: 0°C to 50°C
• Humidity: 5% to 95% Non-Condensing
• Dimensions: 137 × 145 × 54 mm
• Weight: Approximately 393 g
• Management: Juniper Wireless LAN Controllers (WLC Series)
• Deployment Type: Enterprise WLAN, Education, Healthcare, Corporate Networks
• Manufacturer: Juniper Networks
